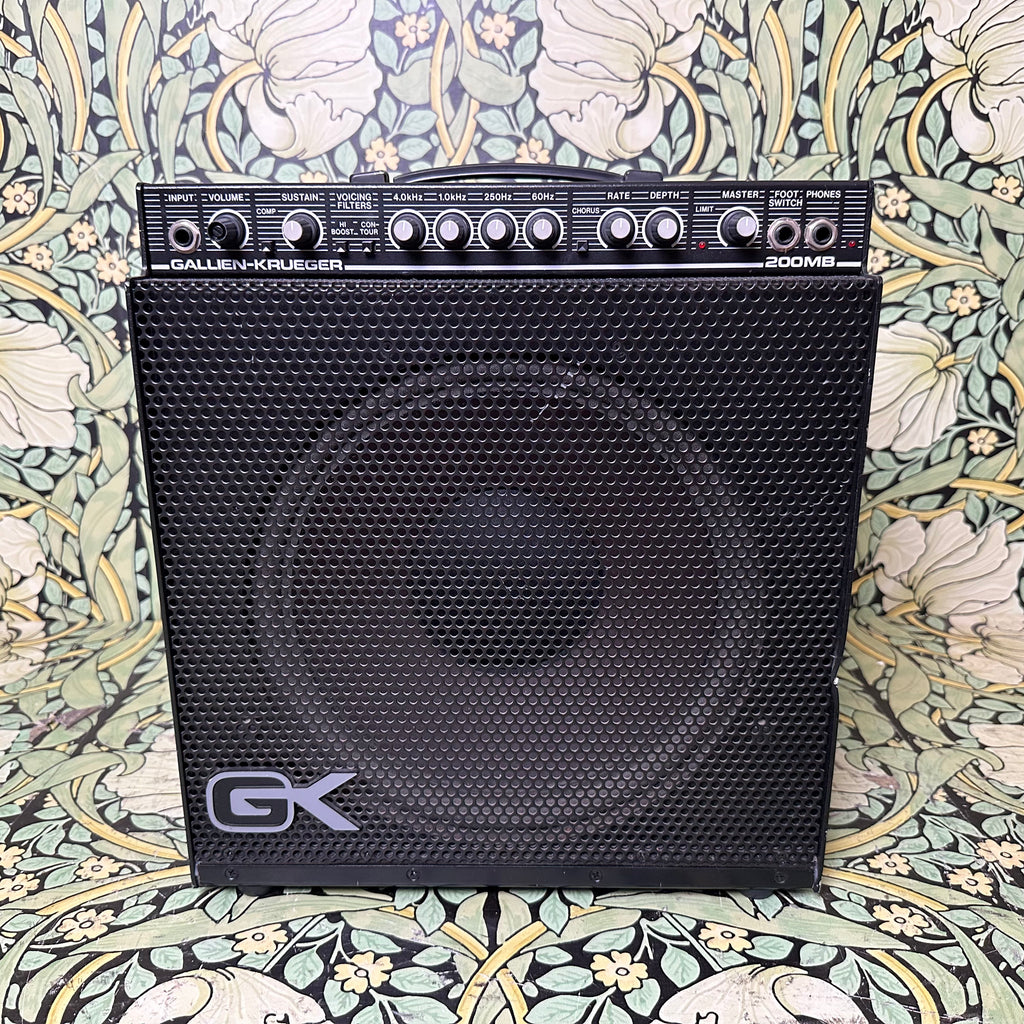

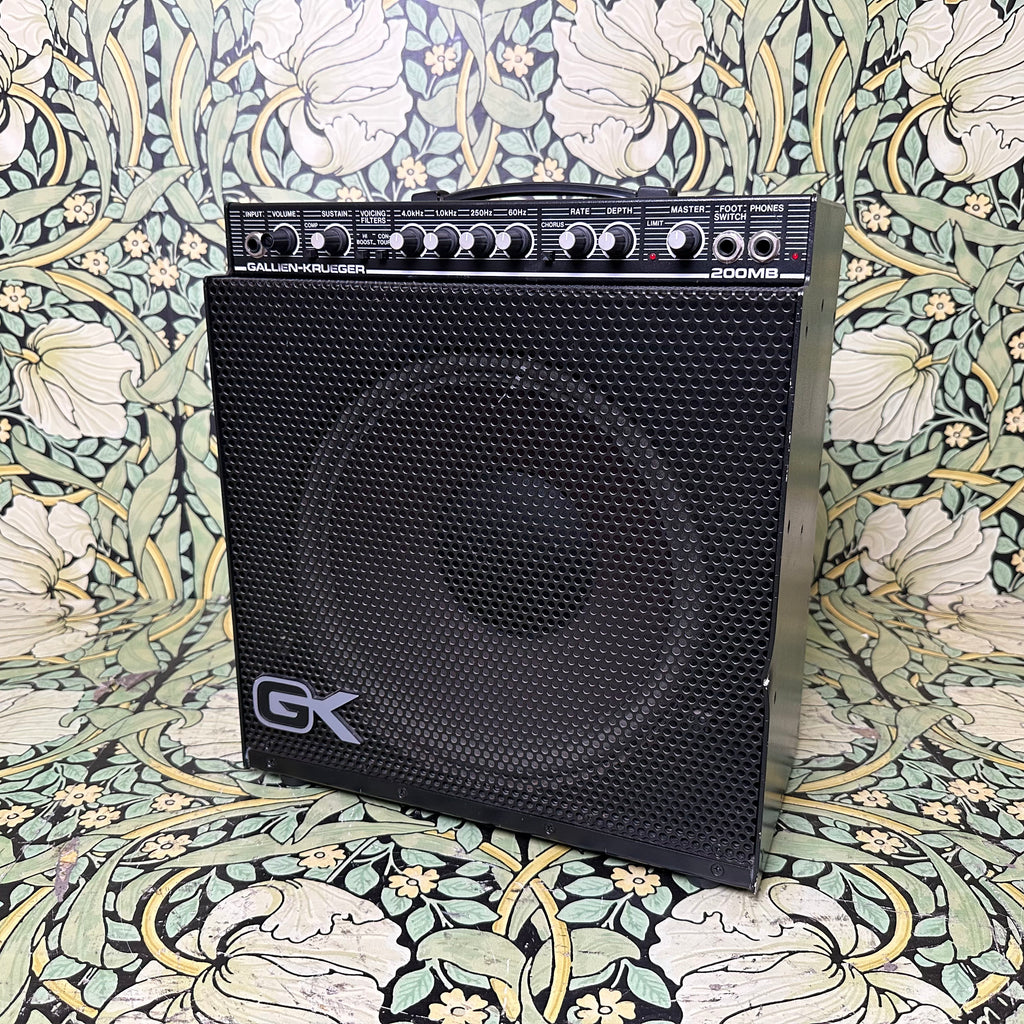

A vintage lightweight bass combo that sounds rad and has onboard chorus?? Yes, please!
With a built in limiter, chorus, 4-band EQ, two voicing filters and a master volume, you've got endless sounds in a small but mighty package!

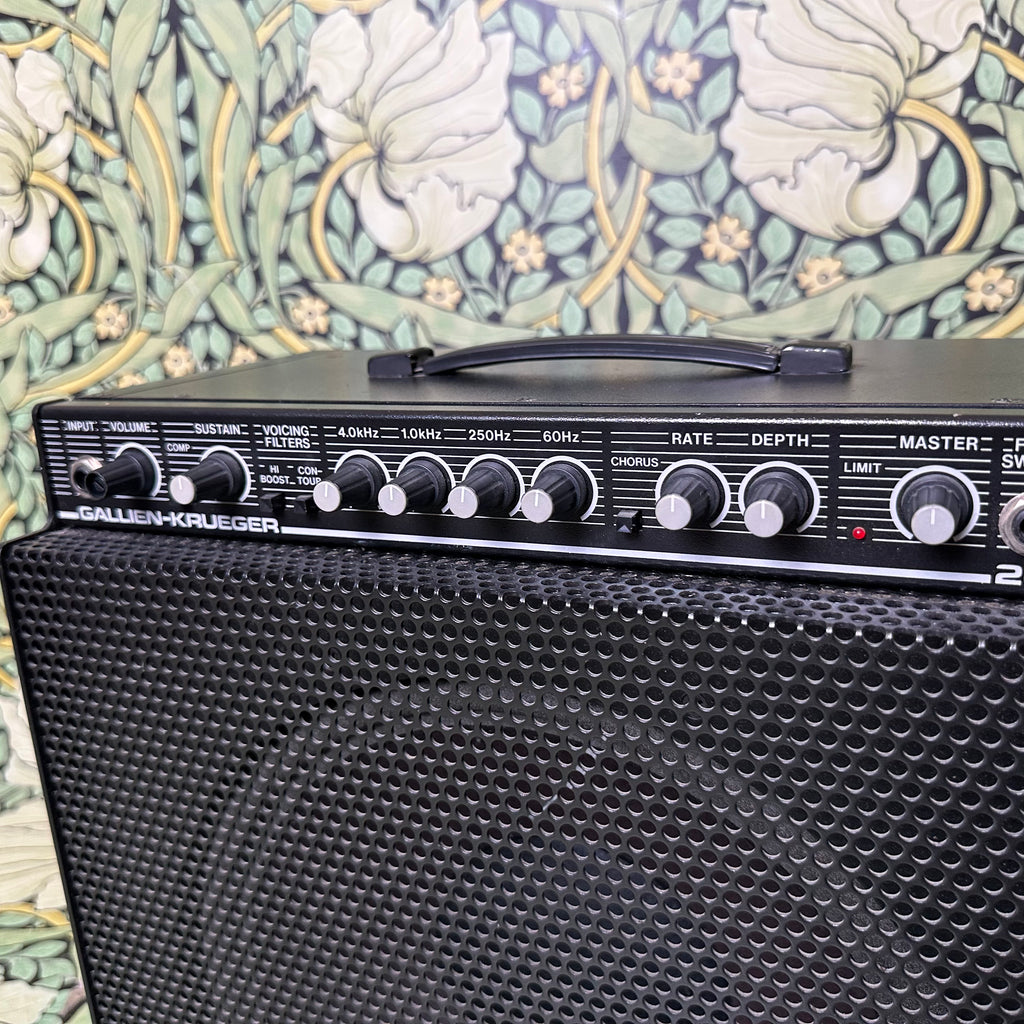

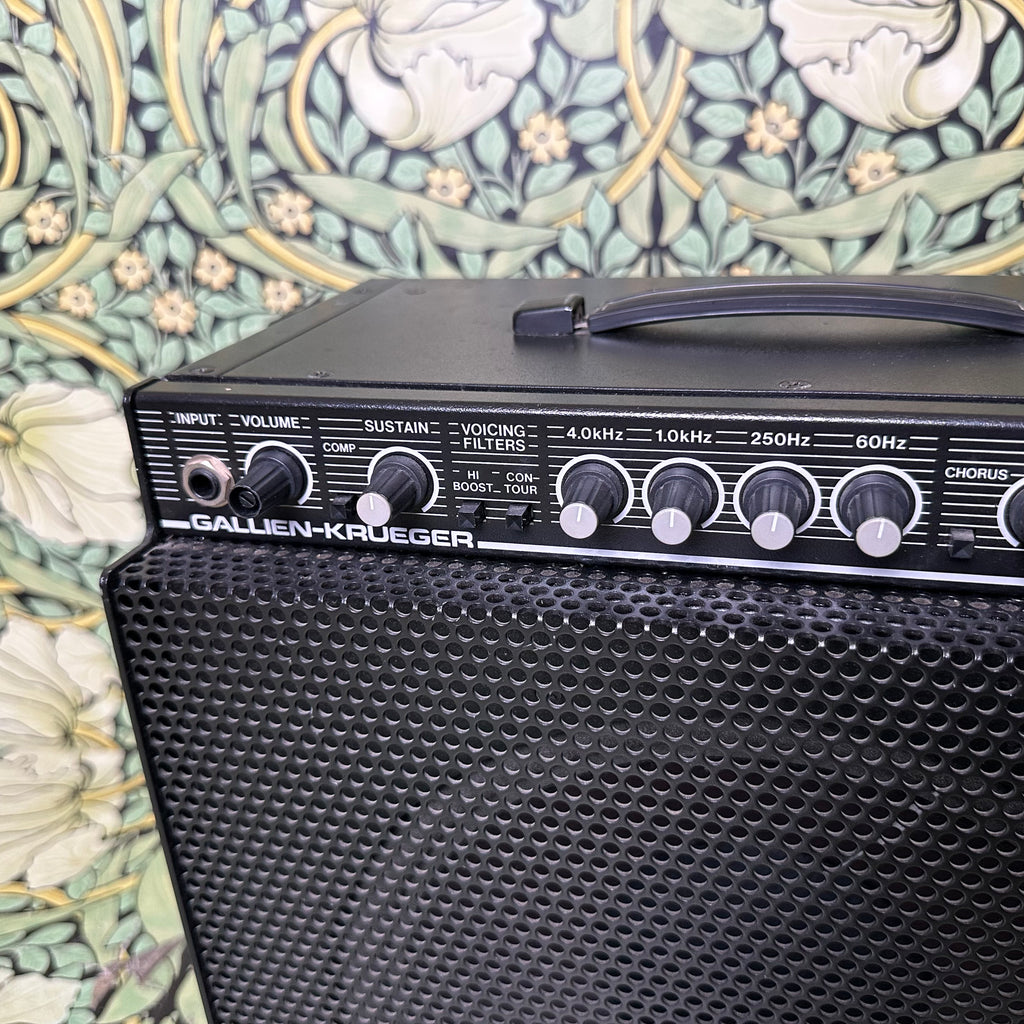

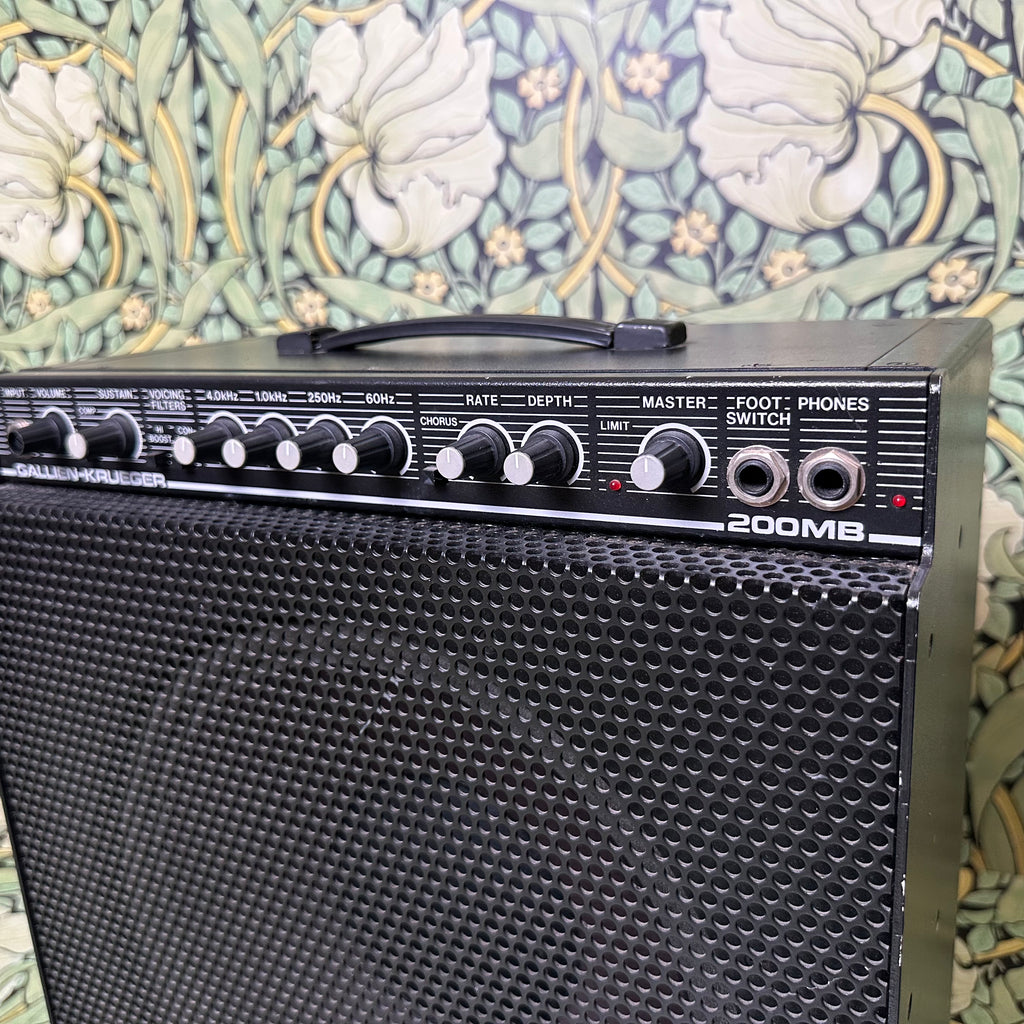

Volume This knob controls preamp volume and limiter threshold, This will control your overdrive sound or sustain when limiter is on.
Voicing Filters
The contour switch "rounds" out the tone by putting a dip in the midrange frequencies and boosting the bass and treble.
The high-boost switch boosts the high frequencies for a brighter sound. Also can be used to "liven" up old and worn strings.
4 Band EQ
- The first knob is an active treble control operating at 4.0 kilohertz. It adds high end and brightness to your sound.
- The second knob is an active high mid-range control operating ot 1.0khz. This controls the punch and definition of your tone.
- The third knob is an active low mid-range operating at 250hz This adds in the meat or body of your sound.
- The last EQ knob is an active bass control operating at 60hz. This controls the bottom end or boom of your sound.
Limiter
With the master up full the limiter will prevent the power amp from distorting.
With the master on lower settings, the limiter will give you smooth distortion free sustain, with the level controlled by the master setling. Raising the volume level increases sustain. It is possible to drive the preamp into distortion by raising the volume control too high, even when the limiter is on.
Master
The master volume controls the total output from off to full power.
Chorus on /off
The chorus is a fully adjustable, studio quality effect unit built right into your amp, it incorporates a high technology IC chip to give a full chorus enhancement of your sound.
Phones
The phones jack is a ¼" stereo jack. It delivers a stereo signal for use with high impedance head phones (600 ohm or greater) Plugging into the phones jack does not disconnect the speakers. To disconnect the speakers use the switch on the rear panel.

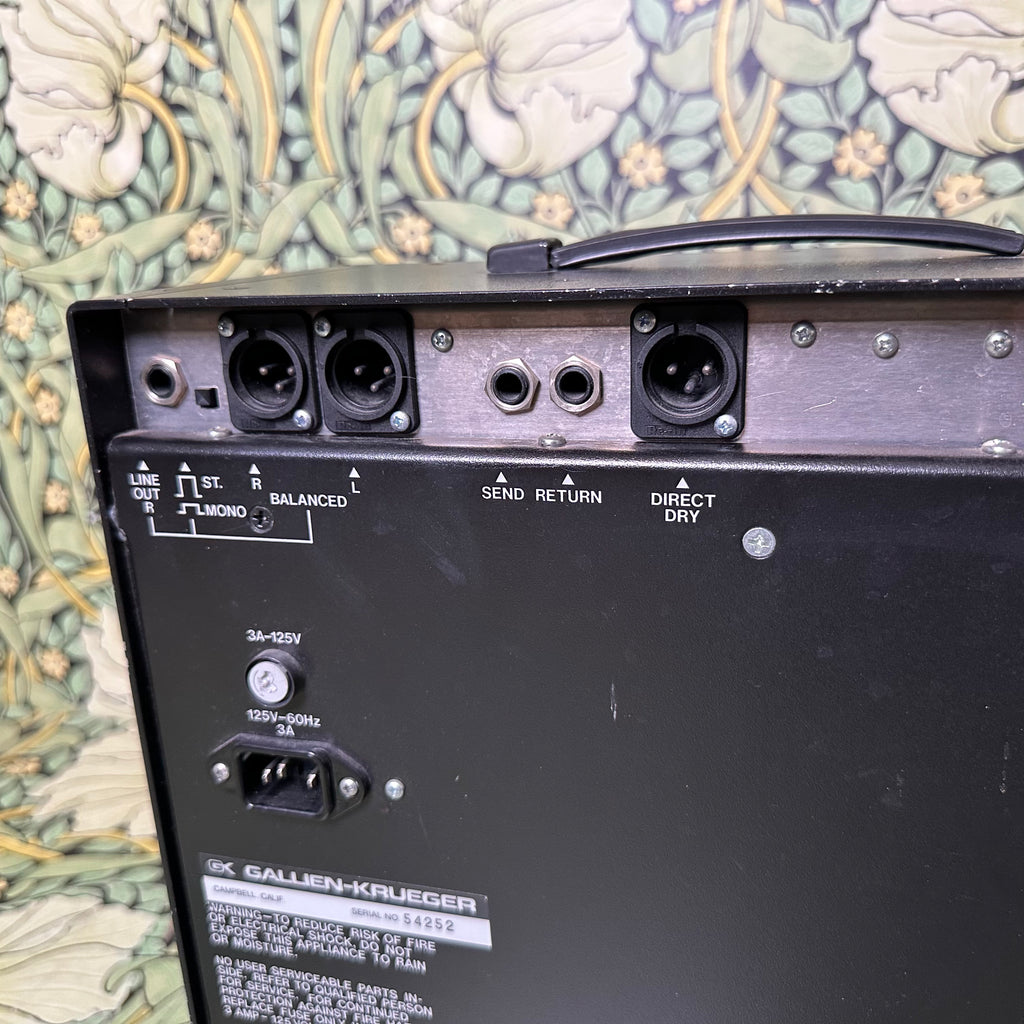

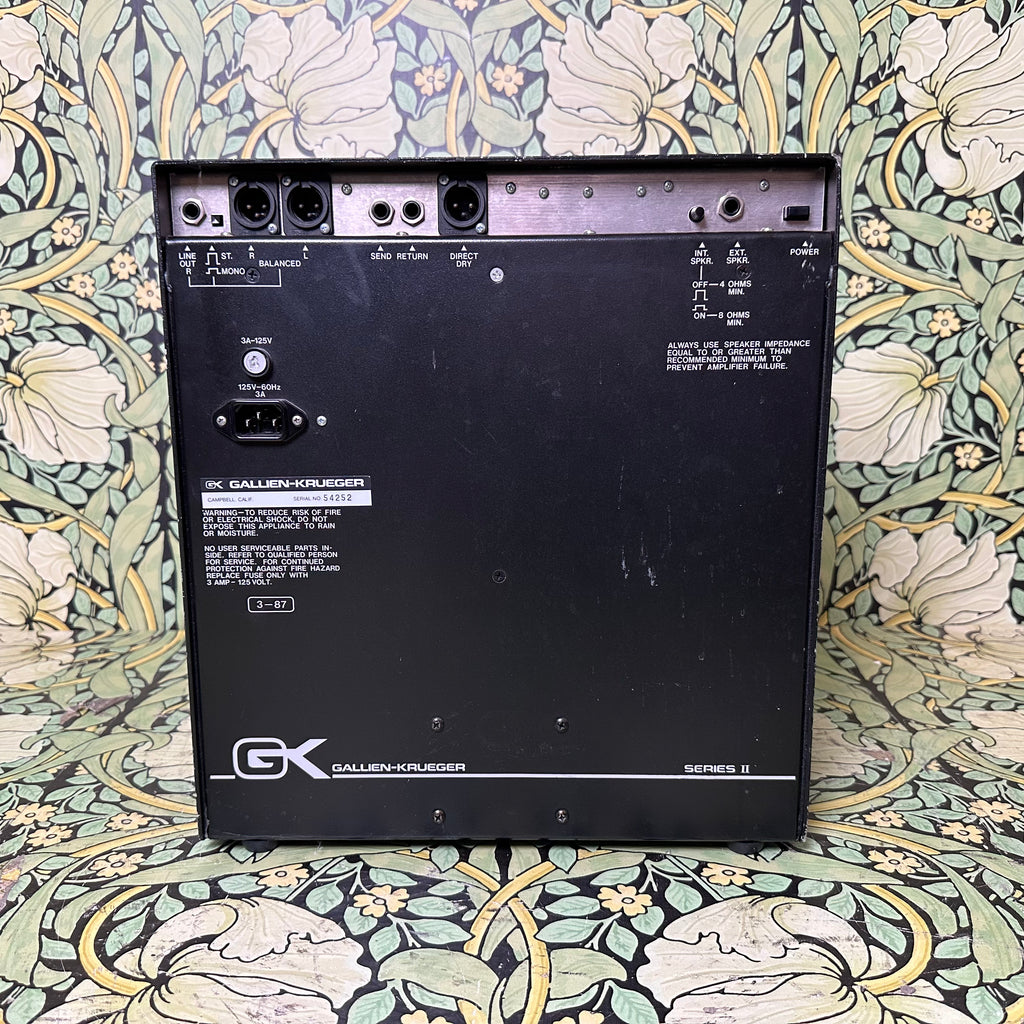

Effects Loop
The effects loop is provided for the insertion of external effects. It is post EQ and pre internal effects. Using standard guitar cords, connect the send of the amp to the input on the effect unit; connect the output of effect to the return on the amp. The level is 150 mv with master up full.
Direct Outs
Both wet and dry low impedance direct outs are provided with your amp for professional recording capabilities. The wet direct signal contains effects and is controlled by the master volume. The dry direct has no effects and is not affected by the master volume.

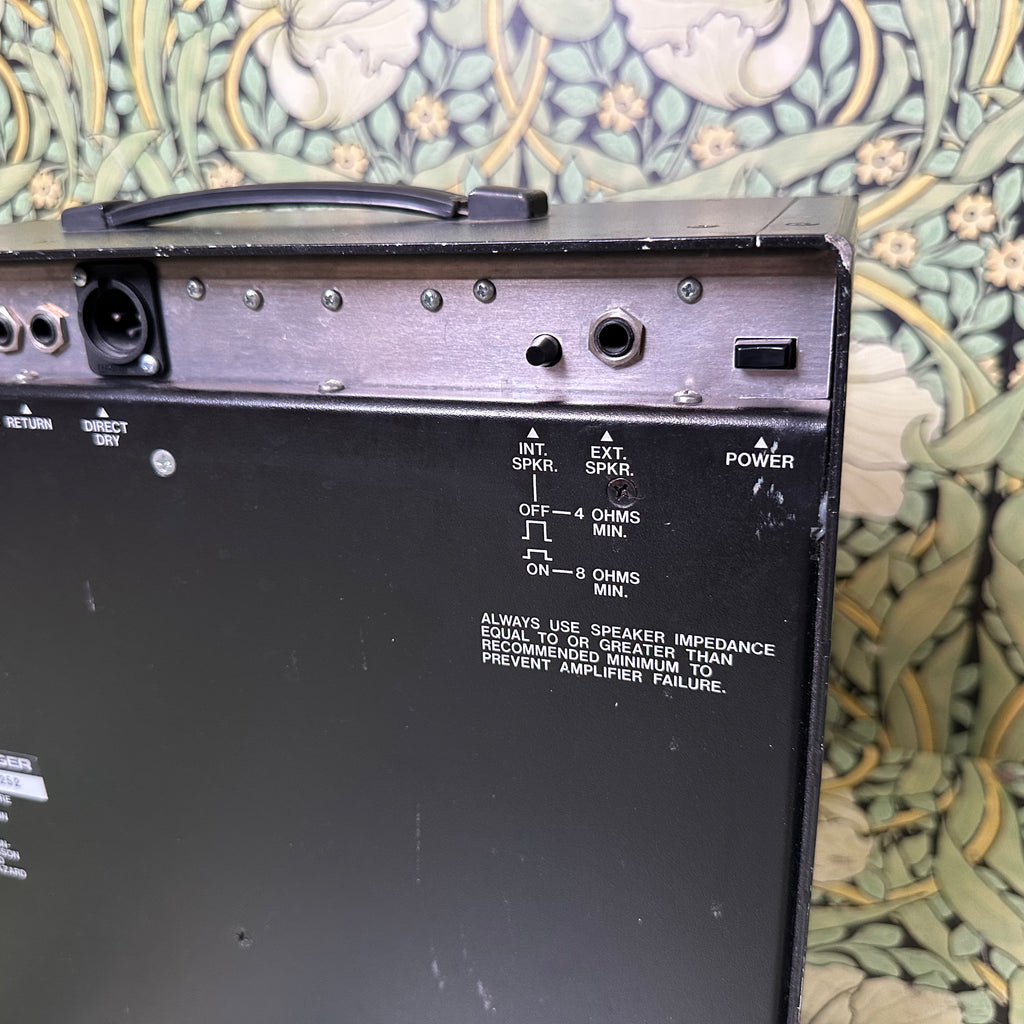

Internal Speaker on/off (200MB)
You have the ability to turn off the internal speaker with this switch.
External Speaker Jack
This jack is for use with an external speaker cabinet. With the internal speaker on, you can add an 8 ohm load. With the internal speaker off, you can add a 4 ohm load.
This bass amp has seen its fair share of love and use in its lifetime but functions flawlessly! We'll ship it to ya safely and swiftly! Give us a shout at the shop with any questions you may have.
