You're lookin' at a killer recreation coming out of Uruguay! Maneco doesn't miss.
Sixteen seconds of vintage delay, inspired by the original looping delay from 1983. Device topology is the same as first digital delays from that era, with an all-analog signal path, pre emphasis and de emphasis, compression and expansion, antialias and reconstruction filtering and input output buffering and mixing. Digital processing is limited only to analog to digital conversion, memory management and storage and digital to analog conversion, all in glorious eight bits .
There’s also an analog triangle Low Frequency Oscillator for modulating delay time/pitch , and a click metronome generator, also analog driven by the memory read circuit , with level and independent output. Maximum delay time is 16 seconds, just like the original unit there are toggle switches for slow/fast speed/pitch and reverse playback.

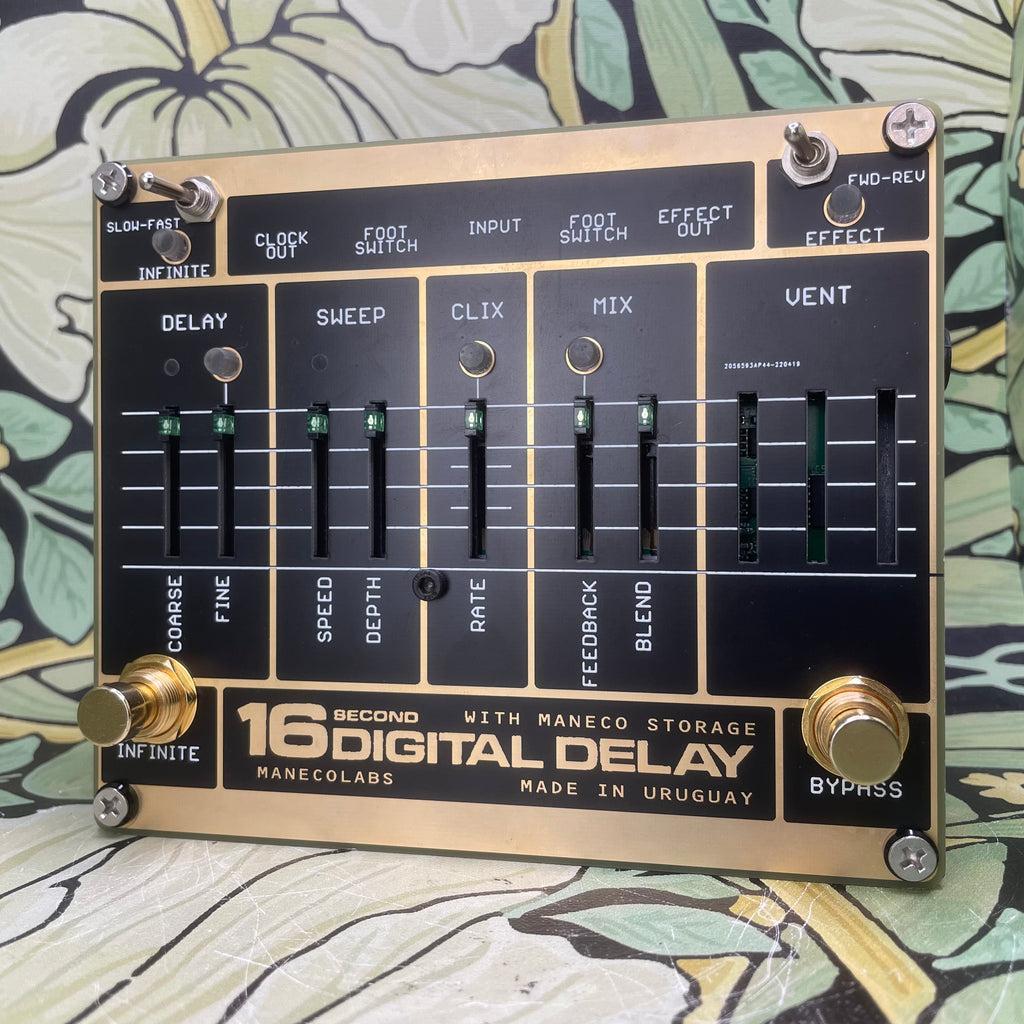

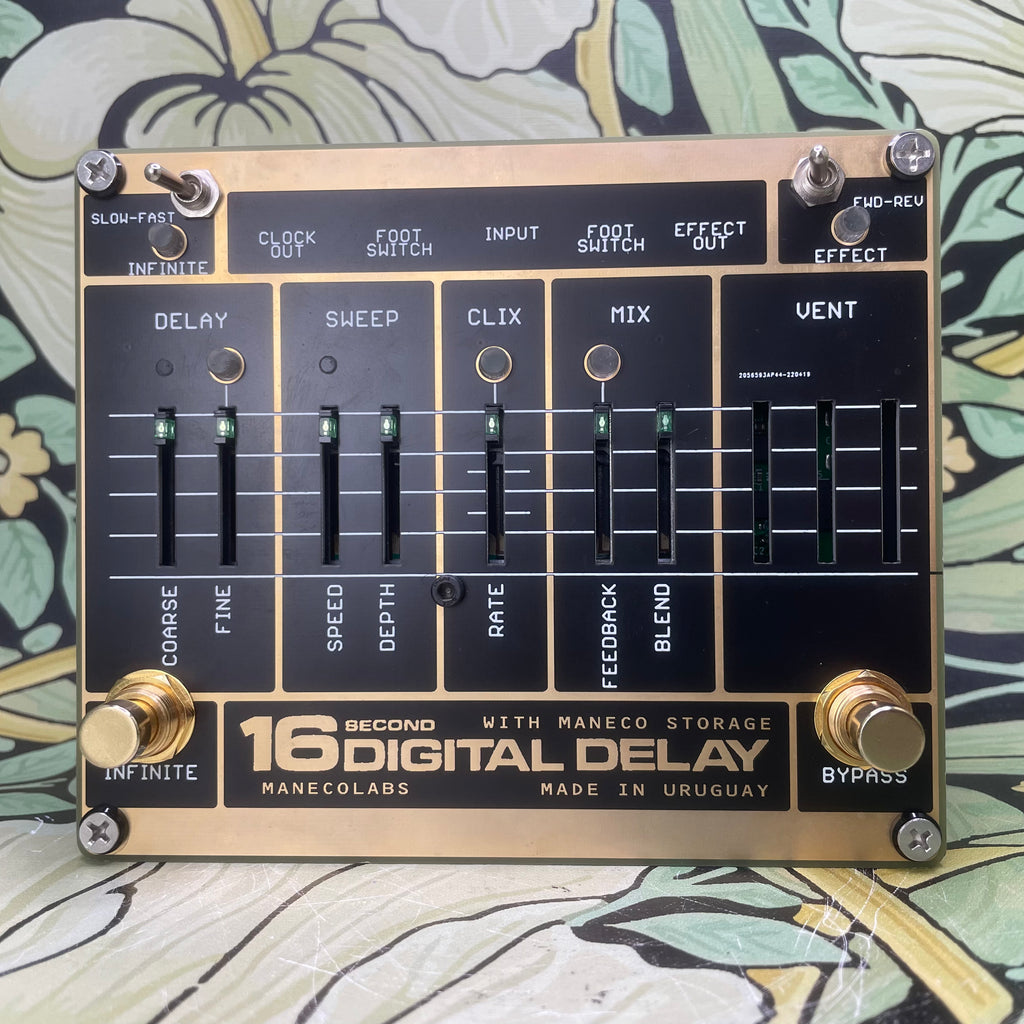

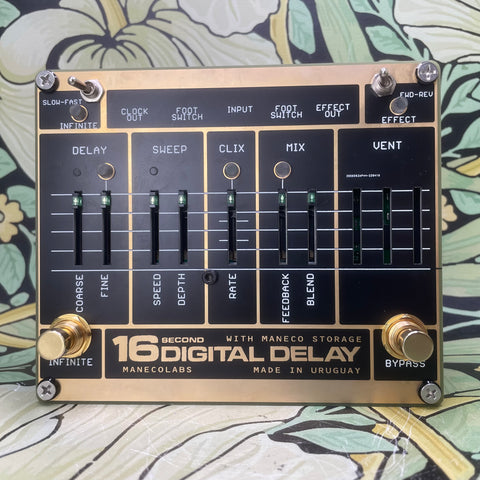

On board footswitches control infinite/freeze from the delay buffer , and bypass for the whole unit. Slider illuminated controls are delay time coarse, delay time fine , sweep rate and depth , clix volume , feedback and mix.
Length: 145mm
Width: 120mm
Depth: 40mm
This sick delay is lightly used and ships fast and free! If you have any questions about this pedal give us a call here at the shop.
