Feeds up to four amps (ensure all grounded to AC Power): low impedance outputs allow the use of long cables without loss of tone or signal level.
It is also possible to add different effects pedals between any output of the 4 Way Splitter and an amp input so that only that one amp will receive the effected signal - good for a dedicated delay amp for instance.

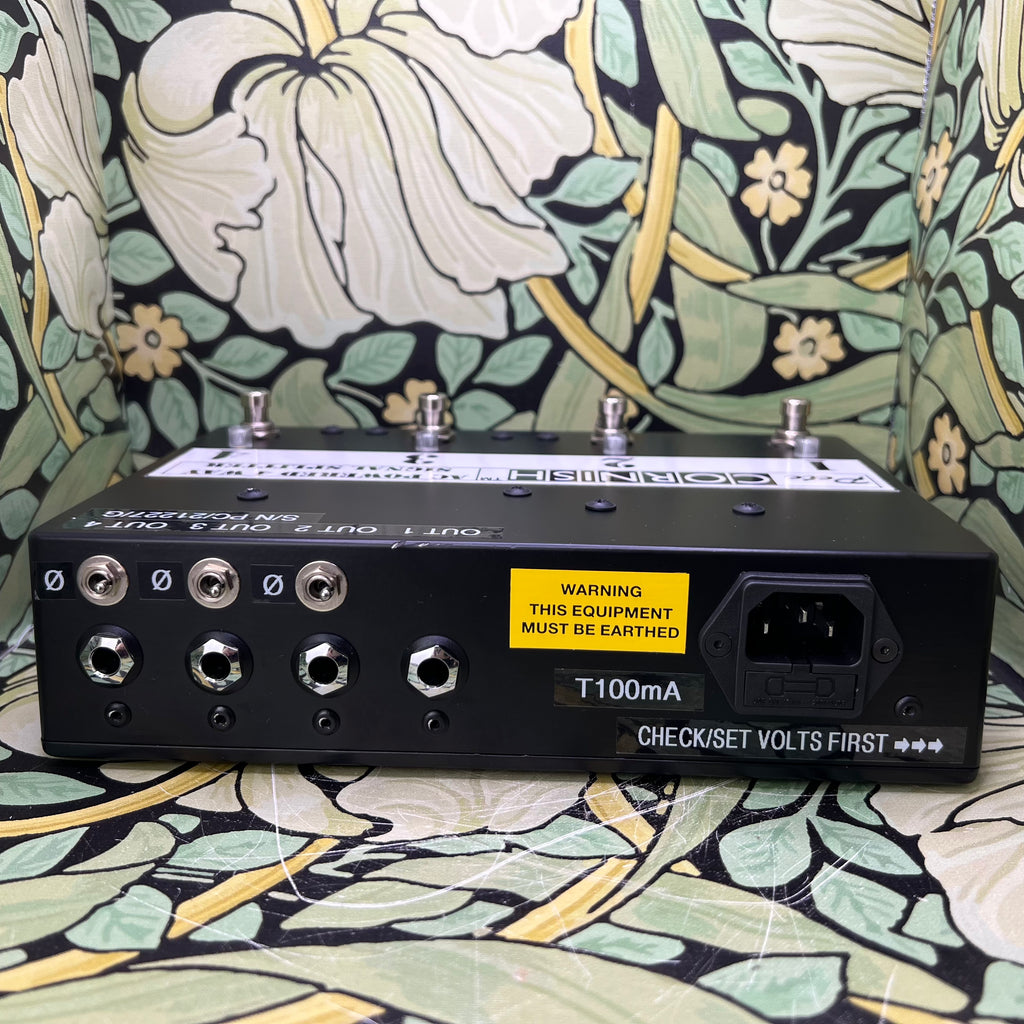

Outputs 1, 2, 3 and 4 are floating and will prevent ground loops occurring: please ensure this unit and your amps are connected to a reliable power ground at all times. The gain structure is unity throughout so all outputs are identical in signal level to the input.

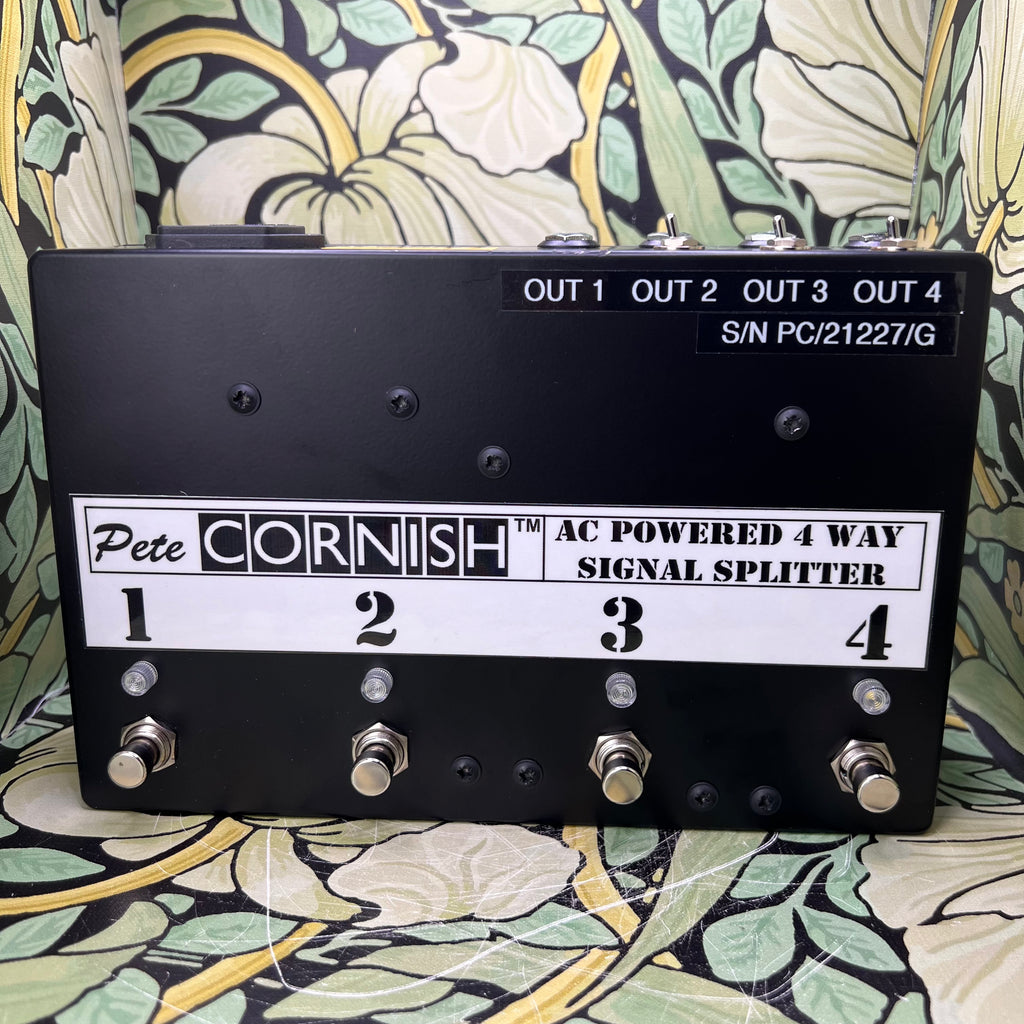

The output sockets (T-R-S 1/4") are fully compatible with mono (T-S) jacks so for normal stage use 1/4" mono jack screened cables to feed the amps may be used. A footswitch controls each output and the selected channel is active when the indicator light is on.
As the outputs use T-R-S 1/4" jacks they can be used to drive amps via Mic Tie Lines or balanced multicore cable runs for studio applications using the appropriate T-R-S/XLR and XLR/mono jack adapters which are available to order.

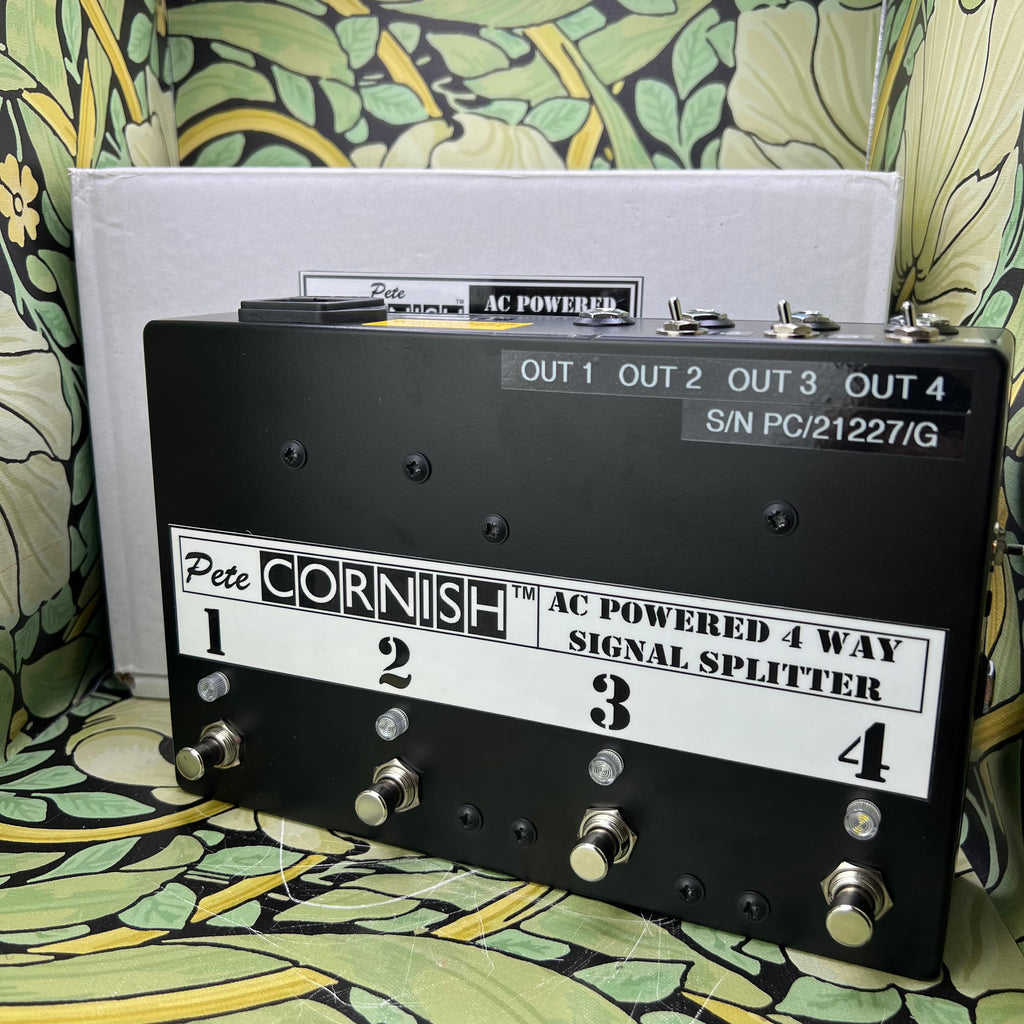

This pedal is very lightly used, and we'll ship it to you super fast and super safe in its original box! Feel free to give us a call with any questions you may have about it!
