THE NEXT GENERATION
The most powerful delay pedal ever.
TimeLine MX delivers stunning studio-quality delays and a host of new professional features in
an elegant and intuitive stage-ready design. Every sound is carefully tuned to react musically to
your playing, and every control has been calibrated for an intuitive feel and response. From
classic echoes dripping with vintage vibe to captivating and modern sounds that push the
envelope, TimeLine MX is full of fresh inspiration.
TIME MACHINE FROM THE FUTURE
TimeLine MX delivers an extraordinary combination of premium features in a single pedal.
12 World-Class Delay Machines
TimeLine MX features new Oil Can, Spectral, Drum, Reverb and Multitap engines in addition to
significant enhancements to the other classic TimeLine delay machines.
Two Effects At Once
Dual delays can be routed in Series, Parallel or Split modes, and individually panned per
engine.
Reverb Plus Delay
In addition to 11 delay engines, a stellar new reverb engine is included, allowing TimeLine MX to
be your all-in-one delay plus reverb pedal.
Five Minute Stereo Looper
TimeLine MX features an integrated Stereo Looper with selectable multi or 1-button looper
modes. The looper can be placed before or after the delay effects, and in 1-button mode it can
be used on the fly without switching to Looper mode.
Full MIDI Control And More
Change presets and control parameters with MIDI via USB-C, TRS, or DIN connections. Access
the looper controls (including reverse, redo and half speed) without entering Looper mode.
Adjust controls via an expression pedal while you play. All this and more in an elegant and
easy-to-use pedal.
Stereo Input/Output PLUS Stereo Send and Return
All jacks are TRS stereo providing selectable I/O configurations for any professional setup,
including stereo or mono effects send/return, wet/dry, and wet/dry/wet.
Raw Processing Power
Timeline MX uses a high-performance tri-core 800 MHz ARM processor that delivers a
staggering amount of computing power, all of which is fully dedicated to producing truly
breathtaking delay (and reverb) sounds. That power means that every original behavioral quirk
— from electro-mechanical variations to the analog circuits of classic digital technologies — was
lovingly recreated.
Two Effects At Once
TimeLine MX allows you to use two engines at once for powerful sound design, intricate
rhythms, or combining delay and reverb in a single preset.
You can switch between delay engines with a single button press while editing, and easily see
the Series, Parallel or Split audio routing state clearly displayed onscreen.
For a more interactive experience, you can dedicate a footswitch to control each engine’s on/off
state if you desire.
All New Reverb
A luxurious new reverb engine provides everything from small rooms to expansive ambient
soundscapes with beautiful long decays. This exceptionally smooth-sounding reverb also allows
you to dial in Grit, to generate saturated and overdriven harmonics before and after the reverb
tank. Taking inspiration from our Flint pedal, this reverb features optional tremolo on the wet
signal with adjustable speed and depth.
Introducing Spectral Delay
This original take on a granular delay has a uniquely musical response with controls that yield
intriguing and delightful results. Use it to slice your signal into fragments and then apply pitch,
reverse, time stretch or filter effects to create a montage of glitchy patterns or fascinating
panoramas. All this plus adjustable Grain Shape means you can easily create a vast range of
fascinating textures.
Brand New Multitap Delay
Lose yourself in complex rhythms with per-tap control over pan, level, feedback, filter type and
cutoff frequency. An easy-to-use and intuitive UI ensures that this eight-tap delay provides
ear-catching results. Choose from a variety of built-in patterns or create your own. Pair it with
another delay type to lock in your rhythms in ways you might never have experienced before.
Swell and Duck
The original TimeLine included Swell and Duck as two separate delay machines. With TimeLine
MX, Swell and Duck are now available for every delay engine.
Swell applies a fade-in of the selected time to the repeats, providing a softer attack. Turn the
Mix to full wet and turn up the repeats for ethereal ambient effects.
Use Duck to keep delay repeats quieter while you’re playing, and then naturally fade up and get
louder when you are not. Set the Duck amount and release time as desired.
Delay Machines
dTAPE Delay
Immerse yourself in the legendary sound of classic sliding-head tape echo machines. You can
shape your tone with control of low end, wow and flutter, tape crinkle, and more. The new MX
voice allows you to drive the tape harder by increasing the recording signal level, while the
Classic TimeLine voice delivers its own unique grit with control of the tape bias.
dBUCKET Delay
Select dBUCKET for the authentic, detailed experience of classic analog bucket-brigade delays,
long coveted for their warm repeats and pleasant signal degradation. Choose between the
Classic TimeLine or all-new MX algorithm and shape your sound with lush, fully adjustable
modulation.
DIGITAL Delay
Choose between multiple captivating rack delay voicings from the 1980s and today:
●
●
●
●
24/94: Modern, clean and pure delay with subtle dynamics processing.
ADM: Early 80s adaptive delta modulation process, providing snappy and percussive
repeats.
12 Bit: Mid 80s 12-bit conversion method yields slightly darker and warmer repeats
Classic: The original TimeLine pedal's digital sound, offering a slightly rounder and fatter
tonality with retained clarity.
Enable Repeat Dynamics to allow the level of your REPEATS to decay more rapidly with a
natural feel.
DRUM Delay
The beloved mechanical inconsistencies of vintage drum echo units are all meticulously
reproduced here, complete with their unique warble and soft-clip textures. Enable individual play
heads and vary their spacing, level, feedback and panning to generate evolving patterns.
OIL CAN Delay
This vintage circuit’s recreation serves up darker, murkier, and less predictable results than
other traditional echo types. Its unique off-kilter repeats and syrupy modulations shift and morph
over time, creating sustained atmospheric textures.
MULTITAP Delay
This intriguing delay offers an endless variety of multitap patterns perfect for both rhythmic and
ambient uses, and everything in between. Modify templates, patterns, note divisions, filtering
and stereo panning for dimensional and trance-like results.
SPECTRAL Delay
This granular delay slices your signal into fragments and applies pitch, reverse, time stretch or
filter effects to create a montage of glitchy patterns or fascinating panoramas. Adjust
Grain Shape for a vast range of textures. This engine really rewards experimentation.
REVERSE Delay
Play a phrase and hear it echo back in reverse. The reverse process is synced to both your
playing and the tempo for a consistently repeatable reverse experience.
ICE Delay
Slices and dices your input signal and plays the pieces back with a selectable interval shift that
ranges between one octave down and two octaves up.
LO FI Delay
Creatively destruct your signal with bit crushing and sample rate reduction. Select from several
hand-crafted filters including transistor radios, telephones, and more. Our exclusive dVINYL
algorithm is also included for adding realistic vinyl effects. Try controlling the sample rate with an
expression pedal for interesting results.
FILTER Delay
Morphs your sound with synchronized tremolo and dynamic filtering, unlocking endless
shape-shifting possibilities. Choose from several LFO waveshapes and tweak filter controls for
speed, depth, Q, cutoff, and more.
REVERB
A new and wide-ranging reverb engine capable of delivering everything from intimate spaces to
larger-than-life sustained washes. Inspired by our Flint pedal, it also offers Tremolo modulation
on the wet signal for enhanced texture.
Features
Ready To Play
Our most powerful delay pedal ever is also our most flexible onstage, combining intuitive
operation with features professional musicians will appreciate. The bright OLED screen is easy
to read even in harsh conditions, and navigation is user-friendly and clear. You can use
the dedicated Tap Tempo footswitch to ensure that you’re in time with the rest of the musicians
onstage as well as to control the one-button looper, and you can also control each machine
separately in a Dual patch with your feet. Full MIDI control over every relevant parameter and
extensive I/O including a hardware effects loop mean TimeLine MX can easily integrate into any
rig.
Stereo Panning
To offer the most flexible audio routing possible, we’ve added a pan control to the output of
each delay engine. Push individual algorithms off to the right so that you can hear the repeats
even more distinctly in a Dual scenario, or push both machines farther to the sides to leave
more space in the middle of the stereo field. It can be a powerful control when used creatively.
Nixie 2
Unleash the full power of TimeLine MX with Nixie 2. Create and edit presets, tweak every
setting in real time, and hear your changes instantly. Back up your favorite sounds with a click
so you never lose that perfect patch. Nixie 2 also lets you connect and control multiple
supported Strymon pedals in one streamlined platform, so you can edit your whole rig from one
place.

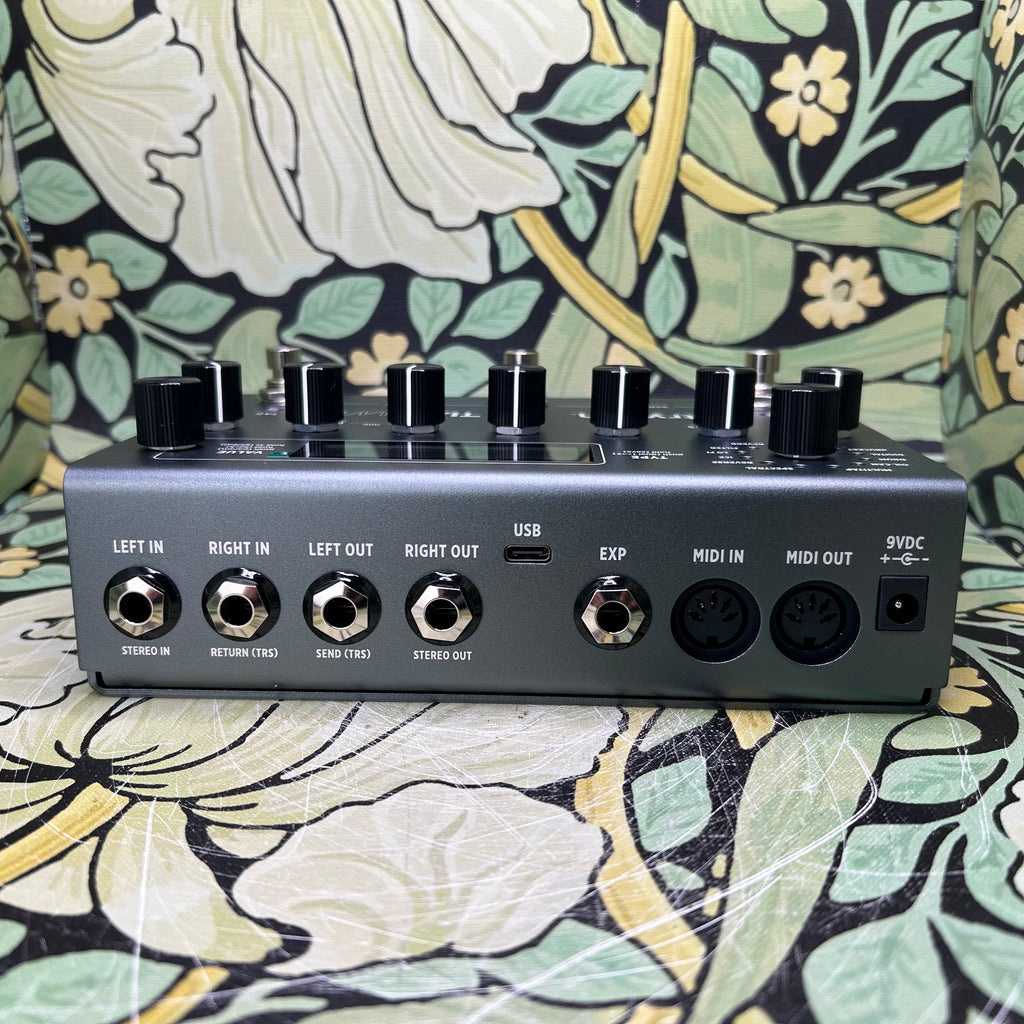

Ins, Outs, and Switches
●
●
●
●
●
●
●
●
Stereo input & output
Switchable I/O configurations for normal, mono or stereo effects loop, wet/dry, and
wet/dry/wet
Dedicated TAP footswitch for setting Delay Time and accessing one-button looper
Infinite repeats for delay feedback effects and infinite reverb sustain (press and hold the
lit A or B footswitch on the current preset)
Premium analog circuits with discrete JFET input preamp and low impedance output
section
Selectable input level for instrument and line level signals
Analog dry path for a zero-latency dry signal that is never converted to digital
True Bypass (electromechanical relay switching) or selectable Buffered Bypass
●
●
EXP input allows the connection of an optional TRS expression pedal, MultiSwitch,
MultiSwitch Plus, or TRS MIDI connection
USB-C jack can be used for performing firmware updates, for MIDI I/O, and for
connection to Strymon Nixie 2 editor software
Audio Quality
●
●
●
●
●
●
●
Input Impedance: 1 Meg Ohm
Output Impedance: 100 Ohm
A/D & D/A: 24-bit, 96 kHz
Max Input Level: +10 dBu
Signal/Noise: 116 dB typical
High-performance 800MHz tri-core ARM processor
32-bit floating point processing
Power Requirements
Use an adapter with the following rating: 2.1mm, center-negative, 9VDC, 500mA minimum (sold
separately)
More
●
●
●
Strong and lightweight anodized aluminum chassis
Dimensions: 5” deep x 7” wide x 1.87” tall (12.7 cm deep x 17.2 cm wide x 4.8 cm tall)
Designed and built in the USA
